Tutorial: Using AWS Transit Gateway with Access Server

Abstract

Use Access Server to establish seamless communication between AWS VPCs with Transit Gateway.

Overview

This tutorial will demonstrate how to effectively use a single Access Server to establish seamless communication between two Virtual Private Clouds (VPCs) in AWS, enabling access to resources in both. Instead of deploying multiple Access Servers in each VPC, you can utilize a single Access Server by creating a Transit Gateway to facilitate communication between your VPCs.

By default, communication between two VPCs in AWS isn't possible, but you can establish connectivity between them by creating an appropriate configuration for a Transit Gateway.

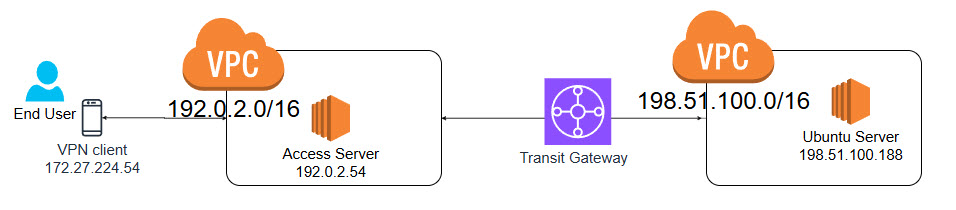

In this tutorial, we will connect my-first-vpc and my-second-vpc using a Transit Gateway. The goal is to reach the Ubuntu instance (198.51.100.188) in my-second-vpc when a client connects to the Access Server in my-first-vpc.

Note

In our documentation, we use example IPv4 addresses and subnets reserved for documentation, such as 192.0.2.0/24, 198.51.100.0/24, and 203.0.113.0/24.

Ensure you replace them with valid IPv4 addresses and subnets for your network(s).

Prerequisites

• An AWS account with VPCs and resources set up.

• Access Server deployed on an EC2 instance.

• Two VPCs set up in AWS (e.g., my-first-vpc and my-second-vpc).

• Ubuntu EC2 instance (ubuntu) in the second VPC.

Here is an example of the setup:

EC2 Instance	VPC	CIDR	Private IP
Access Server	my-first-vpc	192.0.2.0/16	192.0.2.54
Ubuntu	my-second-vpc	198.51.100.0/16	198.51.100.188

Step 1: Create the transit gateway

1. Sign in to your AWS portal and go to VPC.

2. Under Transig gateways, click Transit gateways.

3. Click Create transit gateway.

4. Enter a name for the transit gateway.

5. Leave the settings as default and click Create transit gateway.

Step 2: Create transit gateway attachments

1. Under Transit gateways, click Transit gateways attachments.

2. Click Create transit gateway attachment.

3. Enter a name for the attachment.

4. Under Transit gateway ID, select the transit gateway created in step 1.

5. Under Attachment type, select VPC.

6. Under VPC attachment - VPC ID, select my-first-vpc.

7. Click Create transit gateway attachment.

8. Repeat for my-second-vpc.

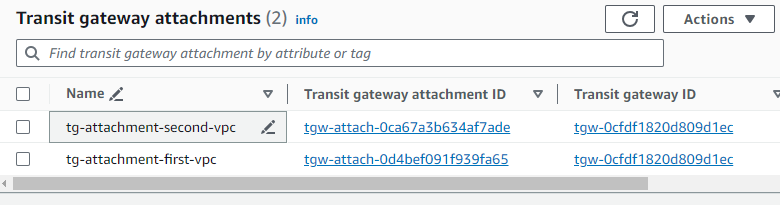

   • You should have two transit gateway attachments as seen in this screenshot:



Step 3: Create a route entry in the transit gateway

1. Under Transit gateways, click Transit gateways route tables.

2. Click on the transit gateway route table.

3. Click Routes and Create static route.

4. Under CIDR, enter the client subnet for VPN clients in Access Server. We will use 203.0.113.0/20 for this example.

5. Under Choose attachment, select the my-first-vpc attachment.

6. Click Create static route.

7. Click on Create transit gateway attachment.

8. Repeat for the my-second-vpc attachment.

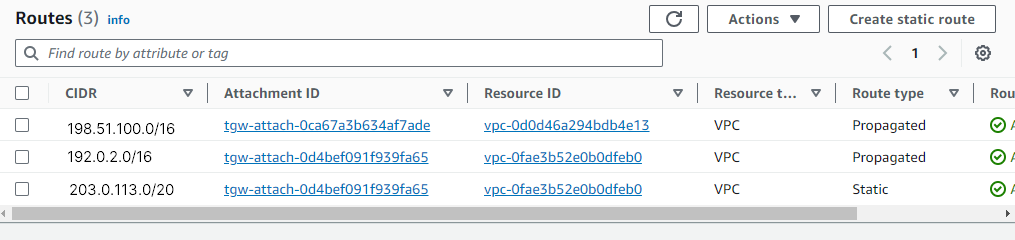

   • Here's an example routing table setup:



Step 4: Verify routing on each VPC

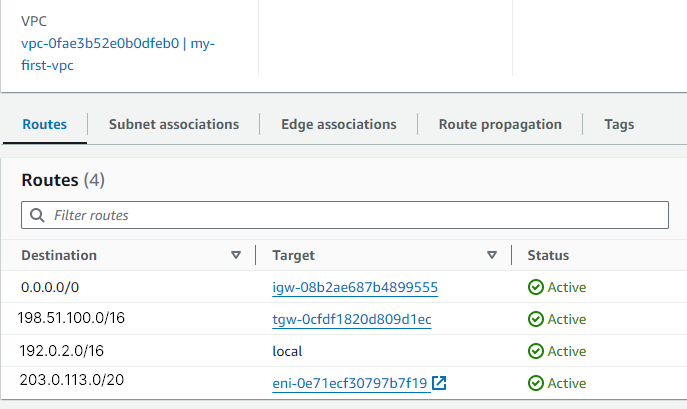

For my-first-vpc:

1. Navigate to the routing table for my-first-vpc.

2. Add two routes:

   • For traffic destined to 198.51.100.0/16, use the transit gateway as the target.

   • For traffic destined to 203.0.113.0/20, use the Access Server instance as the target.

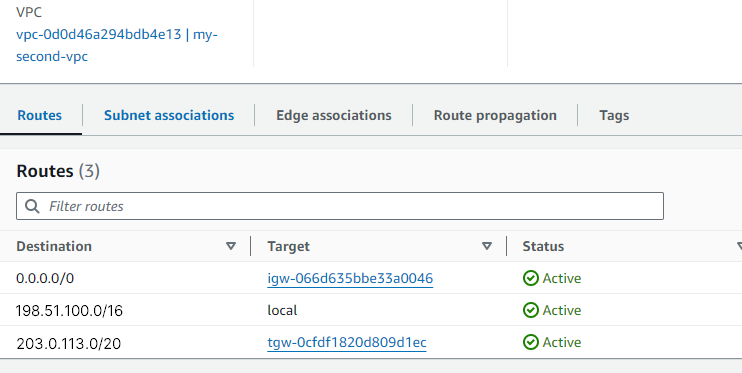

For my-second-vpc:

1. Navigate to the routing table for my-second-vpc.

2. Add one route:

   • For traffic destined to 203.0.113.0/20, use the transit gateway as the target.

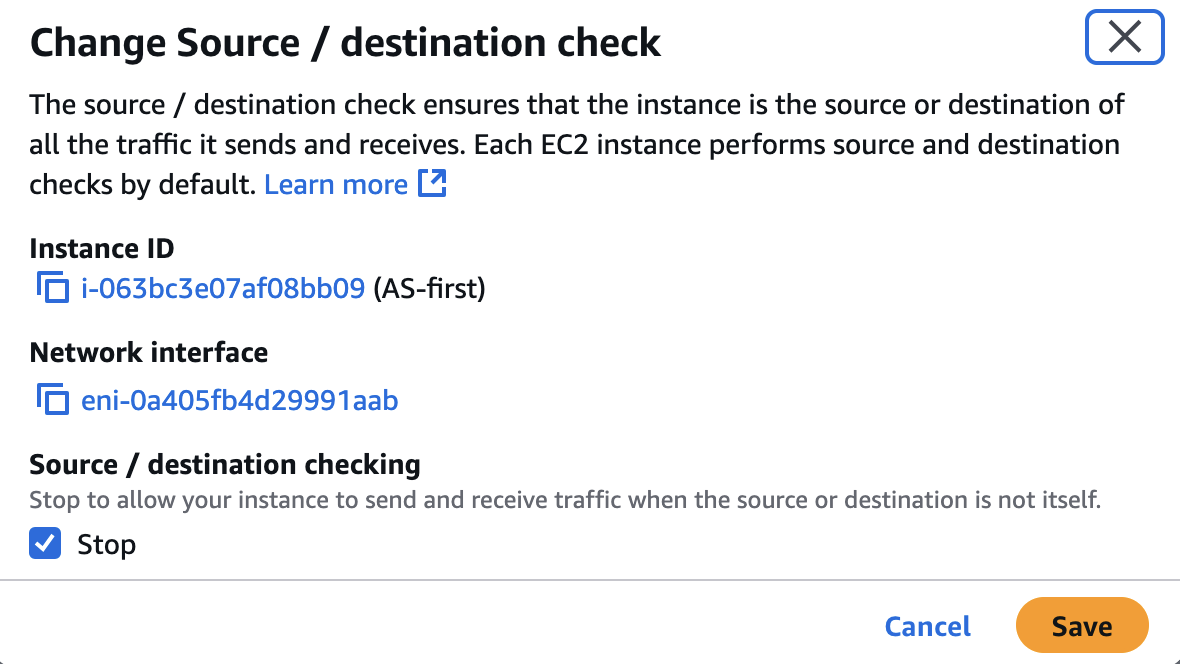

Step 5: Disable source/destination check

1. Navigate to your EC2 instance with Access Server installed.

2. Click Actions > Networking > Change source/destination check.

3. Set Stop and click Save to disable the check.

   • This prevents AWS from dropping traffic to or from VPN subnets that are not part of your defined infrastructure.

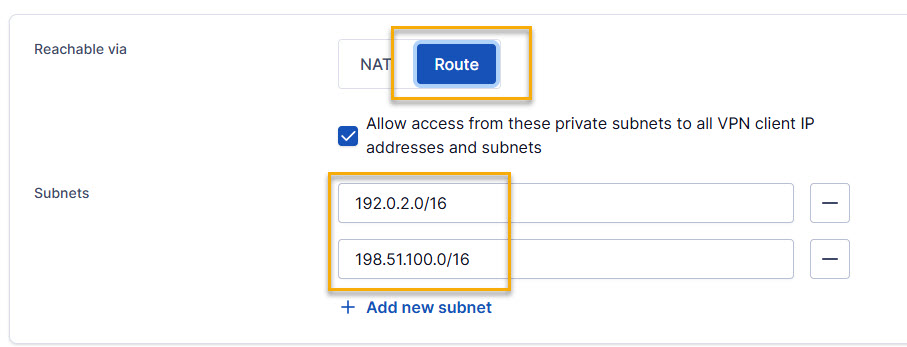

Step 6: Allow traffic in Access Server

1. Sign in to the Admin Web UI.

2. Click Access Controls.

3. Click the Global Access Rules tab.

4. Click to enable Route and enter the subnets in the Subnets text fields.



5. Click Save and Restart.

Step 7: Final test

1. After the configuration, test the connection by pinging the Ubuntu machine in my-second-vpc from a VPN client connected to Access Server:

   ping 198.51.100.188


   • Example output:

     Pinging 198.51.100.188 with 32 bytes of data:
     Reply from 198.51.100.188: bytes=32 time=30ms TTL=63
     Reply from 198.51.100.188: bytes=32 time=30ms TTL=63
     Reply from 198.51.100.188: bytes=32 time=29ms TTL=63
     Reply from 198.51.100.188: bytes=32 time=30ms TTL=63
     Ping statistics for 198.51.100.188:
     Packets: Sent = 5, Received = 5, Lost = 0 (0% loss)


2. A TCPdump on the Access Server should show the communication between the VPN client and the Ubuntu machine:

   tcpdump -eni any icmp


   • Output example:

     tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
     listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
     16:52:27.347551 as0t0 In ifindex 3 ethertype IPv4 (0x0800), length 80: 203.0.113.4 > 198.51.100.154: ICMP echo request, id 1, seq 54, length 40
     16:52:27.347564 ens5 Out ifindex 2 06:e5:c6:b5:4a:64 ethertype IPv4 (0x0800), length 80: 203.0.113.4 > 198.51.100.154: ICMP echo request, id 1, seq 54, length 40
     ...
